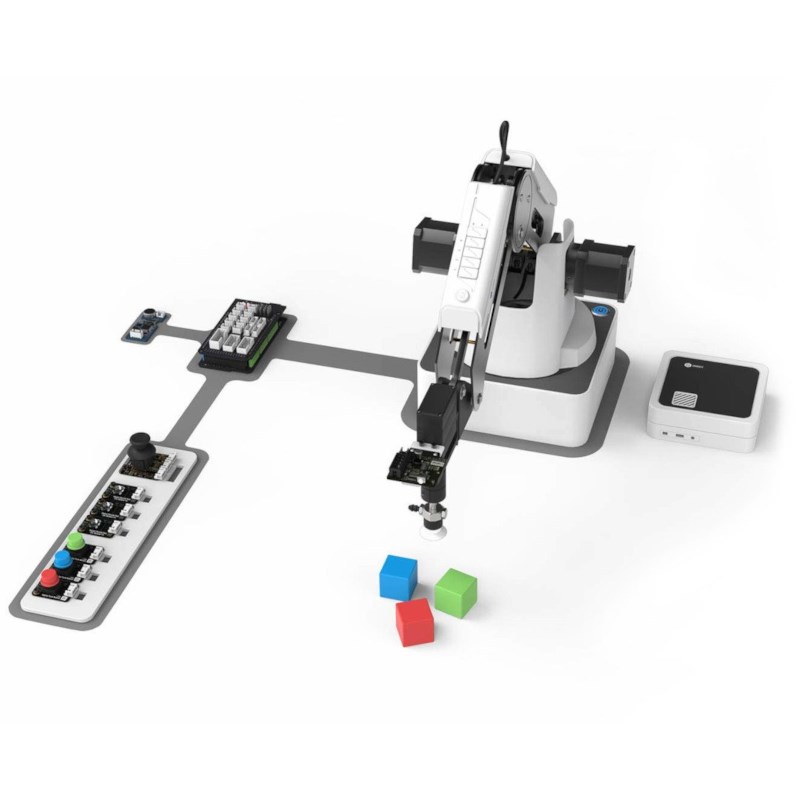

Dobot Magician Arduino Artificial Intelligence Kit

Learning Kit voor Kunstmatige Intelligentie (excl. Dobot Magician robotarm)

De Arduino Artificial Intelligence Suite is uitgerust met: een Arduino Mega 2560 besturingskaart, LED-indicator, joystick, schakelknop, spraak- en visuele herkenningsmodules. Leerlingen kunnen snel aan de slag om de robotarm te besturen via programmering en eenvoudig de basiskennis van AI te begrijpen. Dankzij de opensource cultuur stimuleren we op een innovatieve manier, het creatieve denken.

Specificaties:

DfRduino mega2560 V3 (compatible with arduino mega 2560 )

• Microcontroller: ATmega2560
• Operating Voltage:  5V
• Input Voltage (recommended): 7V - 12V
• Input Voltage(range): 6V - 20V
• Digital I/O Pins; 54 (of which 15 provide PWM output)
• Analog Input Pins: 16 I/O
• DC Current per I/O Pin: 50 mA
• DC Current for 3.3V Pin:  50 mA
• Flash Memory: 256 KB of which 4KB used by bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock Speed: 16MHz

Pixycam5

• Processor: NXP LPC4330, 204MHz, dual-core
• Image Sensor: Omnivision OV9715, 1/4", 1280x800
• Image Sensor: 75 degrees horizontal, 47 degrees vertical
• Lens Type: standard M12 (several different types available)
• Power Consumption: 140 mA
• Power Input: USB Input (5V) or unregulated input (6V to 10V)
• RAM: 264K bytes
• Flash: 1M bytes
• Available Data Outputs: UART serial, SPI, I2C, USB, digital, analog
• Size:  53 x 44 x 36 mm

Digital Button Module

• Keycap Color: Red, Green, Blue
• Supply Voltage:  3.3 V - 5V
• Data type: Digital
• Size: 22 mm x 30 mm

LED Module

• Color: Red, Green, Blue
• Brightness:  2500mcd to 3300mcd Highlight output
• Voltage: 3.3V-5V
• Wavelength: 520nm - 530nm
• Angle: 80° - 110°
• Size: 30mm x 20mm
• Weight 5g
