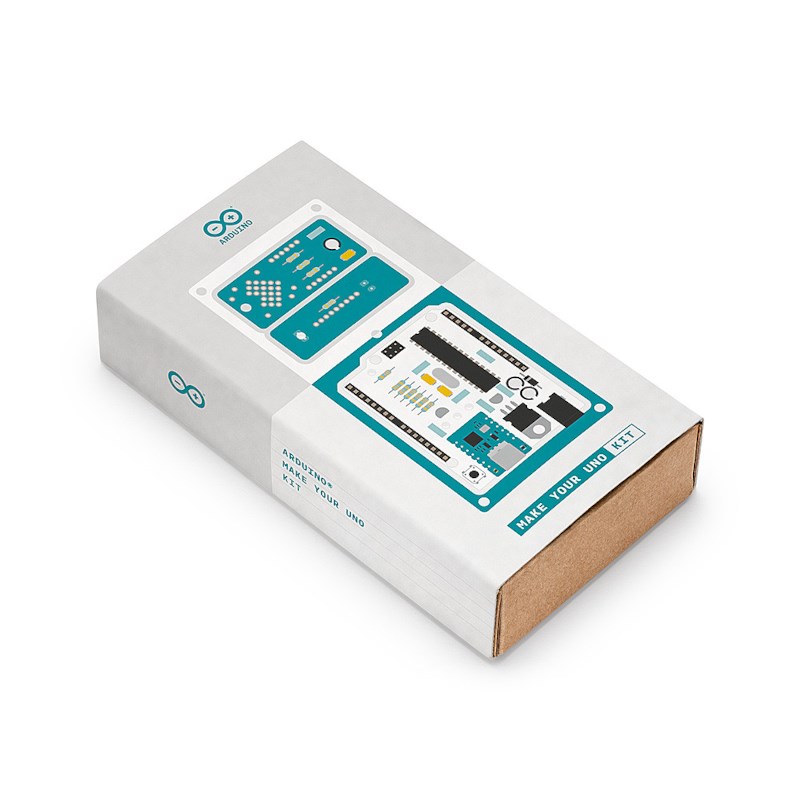

Arduino® Make your UNO kit

Met deze nieuwe Arduino kit ontvang je alles wat je nodig hebt om te leren solderen door je eigen Arduino UNO en wave synthesizer shield te bouwen.

Technische specificaties:

De set bevat de volgende onderdelen:

• 1 x Make Your UNO PCB
• 1 x USB C Serial adapter Board
• 7 x Resistors 1K Ohm
• 2 x Resistors 10K Ohm
• 2 x Resistors 1M Ohm
• 1 x Diode (1N4007)
• 1 x 16MHz Crystal
• 4 x Yellow LEDs
• 1 x Green LED
• 1 x Push-Button
• 1 x MOSFET
• 1 x LDO (3.3V)
• 1 x LDO (5V)
• 3 x Ceramic capacitors (22pF)
• 3 x Electrolytic capacitors (47uF)
• 7 x Polyester capacitors (100nF)
• 1 x Socket for ATMega 328p
• 2 x I/O Connectors
• 1 x Connector header 6 pins
• 1 x Barrel jack connector
• 1 x ATmega 328p Microcontroller

Arduino Audio Synth:

• 1 x Audio Synth PCB
• 1 x Resistor 100k Ohm
• 1 x Resistor 10 Ohm
• 1 x Audio amplifier (LM386)
• 1 x Ceramic capacitors (47nF)
• 1 x Electrolytic capacitors (47uF)
• 1 x Electrolytic capacitors (220uF)
• 1 x Polyester capacitor (100nF)
• 4 x connectors pin header
• 6 x potentiometer 10K Ohm with plastic knobs

Spare parts:

• 2 x Electrolytic capacitors (47uF)
• 2 x Polyester capacitor (100nF)
• 2 x Ceramic capacitors (22pF)
• 1 x Push-Button
• 1 x Yellow LEDs
• 1 x Green LED

Mechanical parts:

• 5 x Spacers 12mm
• 11 x Spacers 6mm
• 5 x screw nuts
• 2 x screws 12mm
